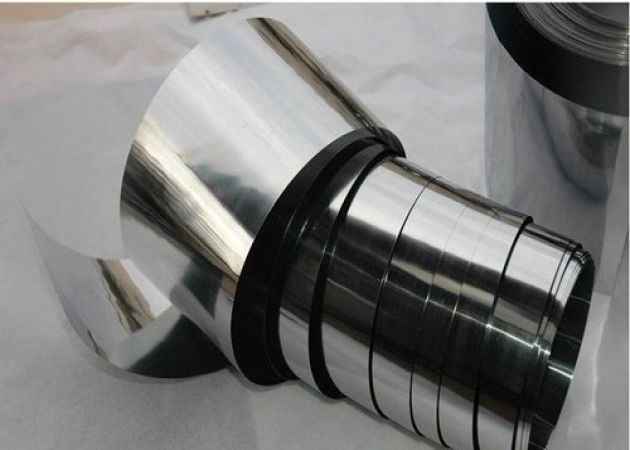

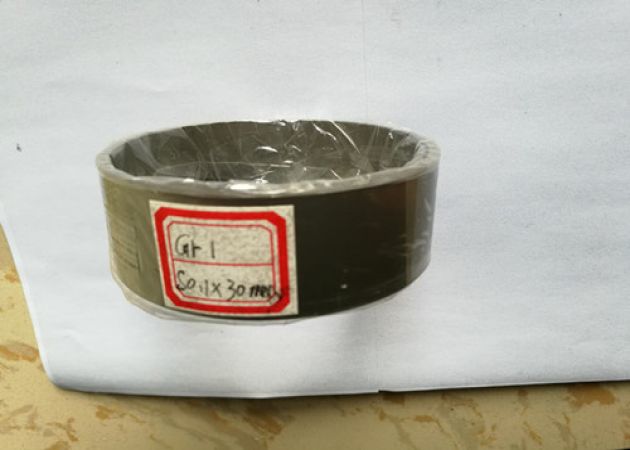

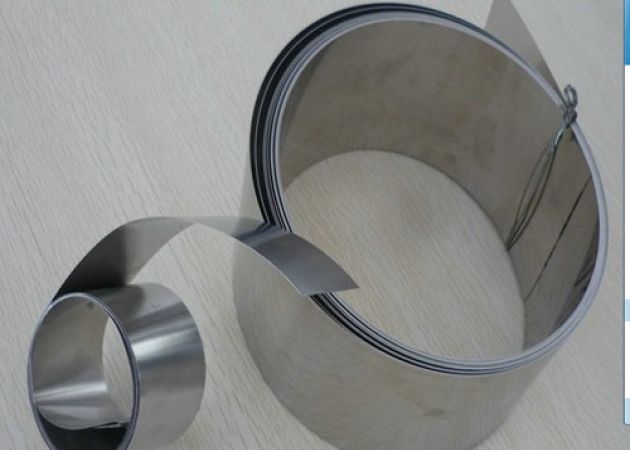

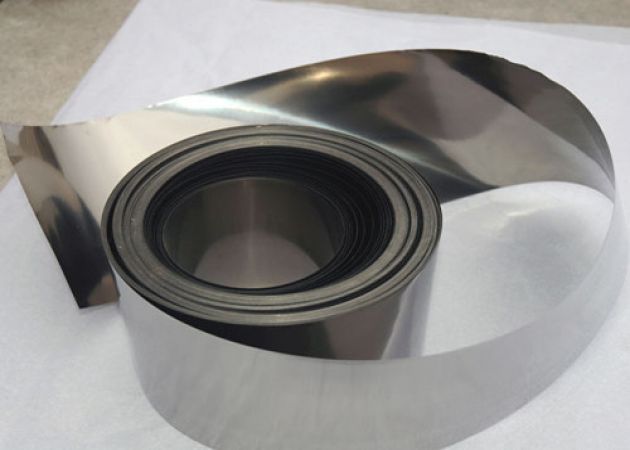

Titanium Strip & Foil

Product : Titanium Foil/Strip
Grade : Gr1,Gr2,Gr3,Gr4,Gr5(Ti-6AL-4V), Gr23
Specification:  ASTM B265/ ASTM F67/ ASTM F136
Main Application :
1) Environmental protection and Water treatment
manufacturing Titanium anode, Titanium electrode
2) Medical
Guided bone regeneration for small bone defects in Dental / Surgery/Orthopedics

Product Details

Item name

Titanium foil

Specification

ASTM B265   ASTM F67   ASTM F136

Width

3-500mm

Thickness

0.002~1.0mm

Length

As request













Chemical Request



N

C

H

Fe

O

Al

V

Pa

Mo

Ni

Ti

Gr 1

0.03

0.08

0.015

0.20

0.18

/

/

/

/

/

bal

Gr 2

0.03

0.08

0.015

0.30

0.25

/

/

/

/

/

bal

Gr 5

0.05

0.08

0.015

0.40

0.20

5.5~6.75

3.5~4.5

/

/

/

bal

Gr 7

0.03

0.08

0.015

0.30

0.25

/

/

0.12~0.25

/

/

bal

Gr 9

0.03

0.08

0.015

0.25

0.15

2.5~3.5

2.0~3.0

/

/

/

bal

Gr12

0.03

0.08

0.015

0.30

0.25

/

/

/

0.2~0.4

0.6~0.9

bal

Mechanical Properties



Grade

Tensil strength(min)

Yeild strength(min)

Elongation (%)

Ksi

MPa

Ksi

MPa

1

35

240

20

138

24

2

50

345

40

275

20

5

130

895

120

828

10

7

50

345

40

275

20

9

90

620

70

438

15

12

70

438

50

345

18



Application

(1). Grade 1 can be used in the drawing parts for its good elongation and excellent corrosion-resistance.

(2). Grade 2 is used most widely in the commercially pure titanium

(3). Grade 3 is almost used in pressure,vessel.

(4). Grade 4 can be used in some fittings parts and fastening pieces, but for complex shape need 300 degree

celsius to form.

(5). Alloy grade 5(Ti-6Al-4V) widely used in the titanium alloys because of its comprehensive mechanical and

chemical properties.

(6). Alloy grade 7 add little palladium in cp titanium and it has the most excellent corrosion-resistance,of

course it costs higher.

(7). Alloy grade 9(Ti-3Al-2.5V) is the most widely used in the golf clubs and bicycle girders.

(8). Alloy grade 23, ELI(extra low interstitial),can be used in the medical appliance.



Parameters

Item name

Titanium foil

Specification

ASTM B265   ASTM F67  ASTM F136

Width

3-500mm

Thickness

0.002~1.0mm

Length

As request
